OVERVIEW

Updated

The LU800 is a compact, lightweight video uplink unit used to transmit high‑quality video from diverse locations. The unit supports multi-camera transmission from up to four, full-HD cameras, from the field to the station.

LU800_Power_and_Workflow_EN.pdf

Note

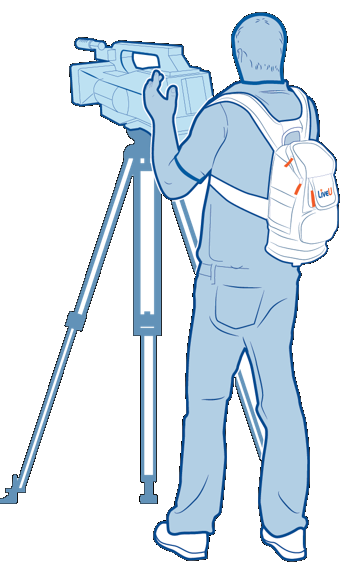

The LU800 is delivered in the LiveU backpack, already set up with all required configurations and connections. LiveU recommends using the unit directly from the backpack.

POWERING ON

  1. Press the Power button for about two seconds.

    The Home screen is displayed on the unit's touch screen. If a camera is connected to the LU800, the video that the camera is capturing is displayed in the preview area. All LU800 operations are performed on the touch screen.

  2. Tap START to begin transmitting.

SHUTTING DOWN

  1. Tap STOP to halt transmission.

  2. Tap Power_icon.png.

  3. Tap Shut Down or Restart.

What's in the box?

  • LU800 portable video uplink unit

  • LU800 backpack

  • Wired remote control

  • AC/DC Adapter

  • External battery cable

  • 1 x SDI cable (BNC to BNC 2.2 m)

  • 2 x external antennas breakout cables (for the external antenna only)

  • 1 x GPS antenna breakout cable (for the external antenna only)

  • Optional accessories:

    • D-TAP cable for external Anton / Bauer / V-mount batteries

    • LU800 Anton Bauer external battery adaptor

    • Car cradle for mounting the LU800 unit

    • LU800 V-Mount external battery adaptor
