Ports

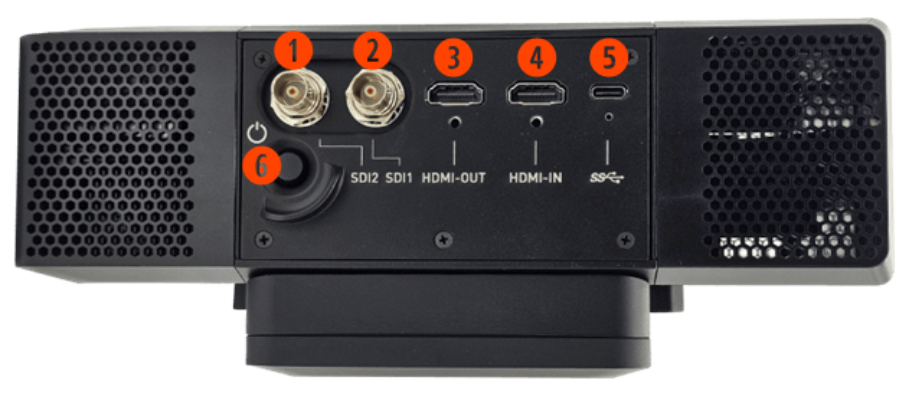

Right Panel

Key:

1. SDI 1 (12G): Primary camera input supporting SD up to 1080p signals.
2. SDI 2 (3G): Video Return output.
3. HDMI OUT: Video Return output.
4. HDMI IN: Supports HDMI 2.0 camera sources.
5. USB SuperSpeed (SS) 3.0 / 3.1 / 3.2 port.
6. Physical Power Button: Hardware control for powering the unit on or performing an emergency shutdown.

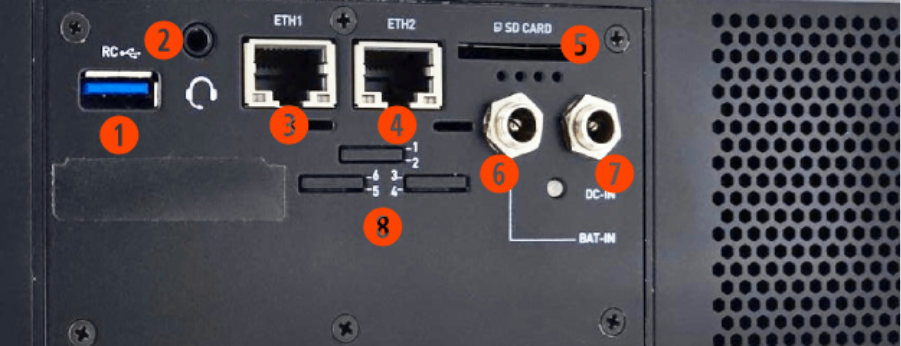

Left Panel

Key:

1. RC / USB-A port for accessories or external modems.
2. 3.5 mm headset jack for monitoring or intercom.
3. ETH1 Ethernet port.
4. ETH2 Ethernet port.
5. SD Card Reader.
6. BAT-IN (11–17 V) for external battery or vehicle power.
7. DC-IN (19 V) for AC power.
8. SIM card slots.

Note

When a headset is connected to the unit, appears at the top of the screen. Tapping this icon allows you to control headset settings. When using IFB / Intercom, connect to Headset Connector.
