The LU610S is a professional 1U HEVC rackmount encoder for vehicles and fixed locations, combining unparalleled video performance with extreme bandwidth efficiency. The LU610S offers the perfect hybrid cellular/satellite solution for SNG trucks, point-to-point and point-to-multipoint distribution.
[For LU610S-M models only] Your unit may come with SIM cards pre-installed, depending on whether it was purchased (no SIMs) or leased (with SIMs).
Your unit comes with 6 x modem modules, which support a dual-sim option per modem. These modules allow you to install 2 sets of SIMs (A and B), where the option to switch between these SIMs on a specific modem or on all modems at once is given via LiveU Central.
Note
The LU610S-M requires external antennas to be connected as per local recommendations and limitations in order to function correctly. For more information, please talk to your LiveU representative.
We recommend inserting the SIMs while the system is turned off.

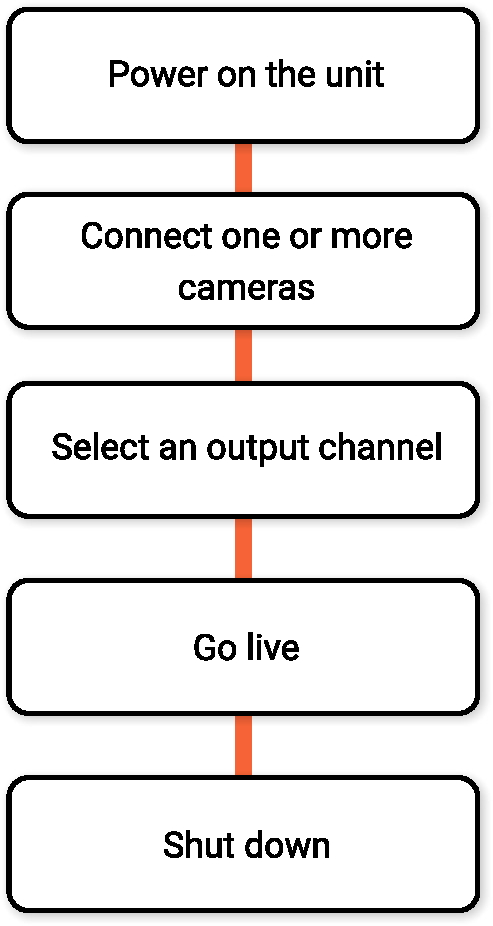

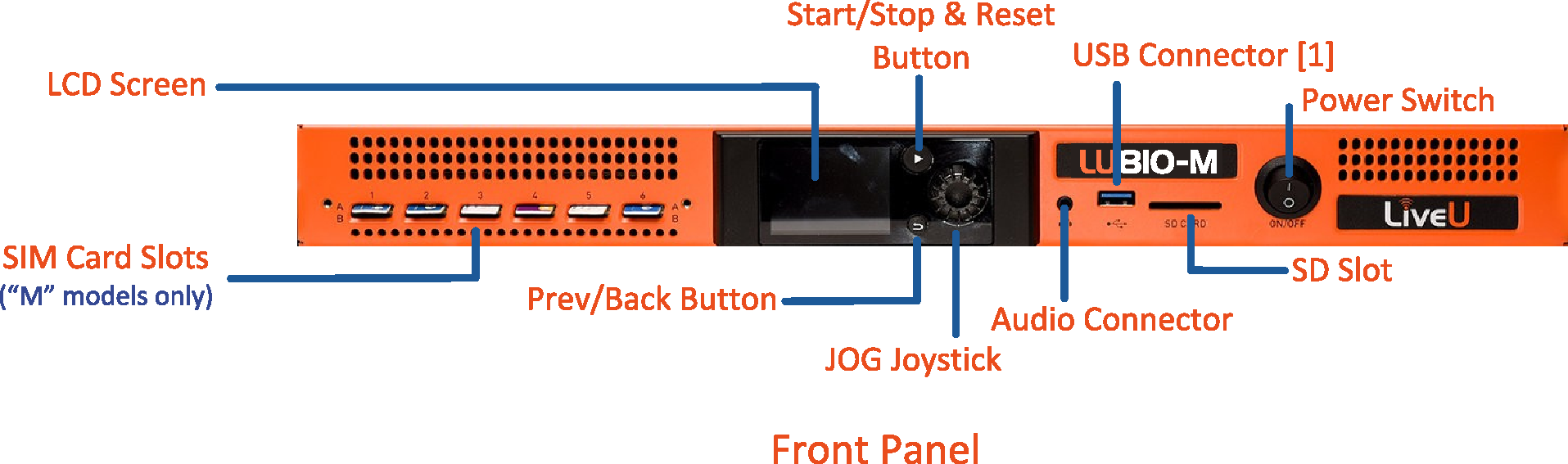

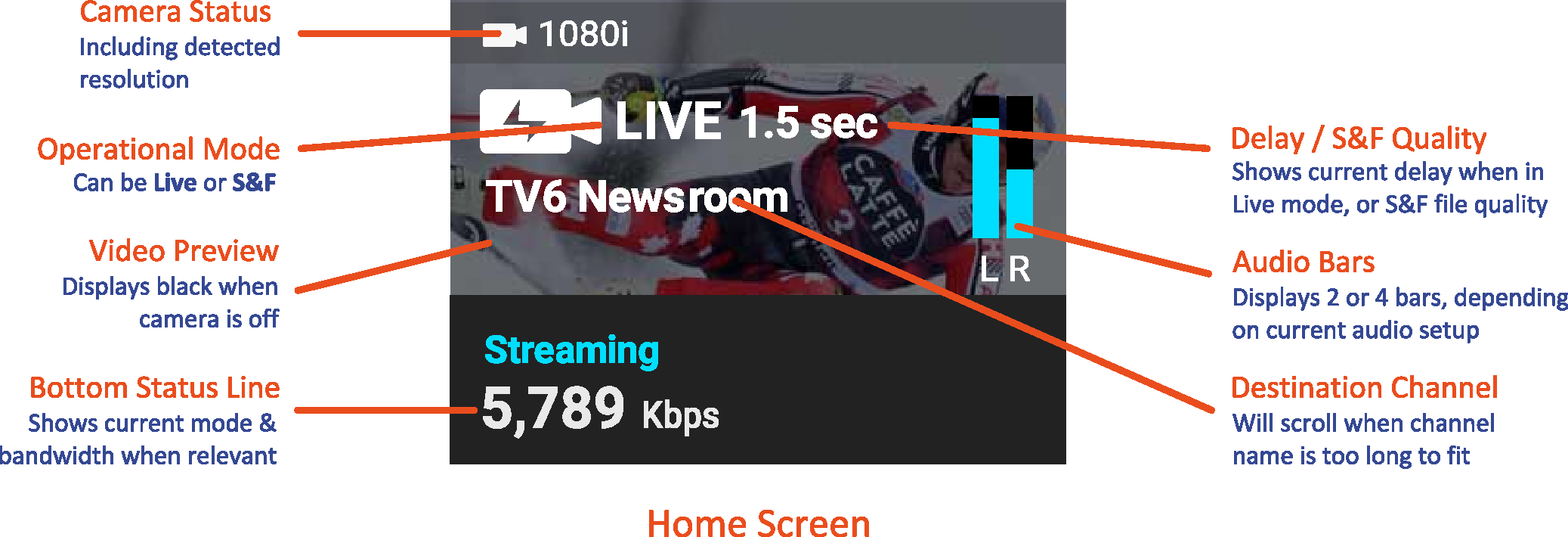

Flip the Power button on the front panel to turn the unit on. The LU610S will display the Home screen once it is ready for transmission, typically within 30 seconds from power on.
Note
The LU610S comes with an AC/DC power supply that we recommend connecting in parallel to the standard mains connection, providing additional power-supply redundancy.

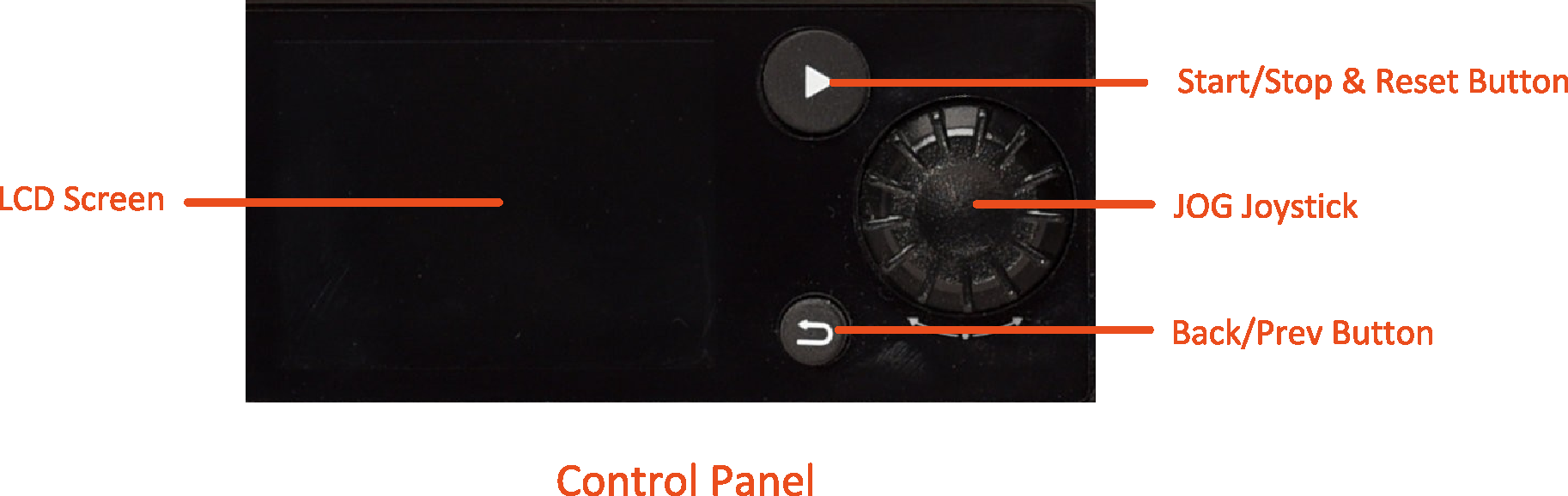

The LU610S uses a rotary JOG, a Back/Prev Button and a Power/Play button to navigate through the on-screen GUI.
-

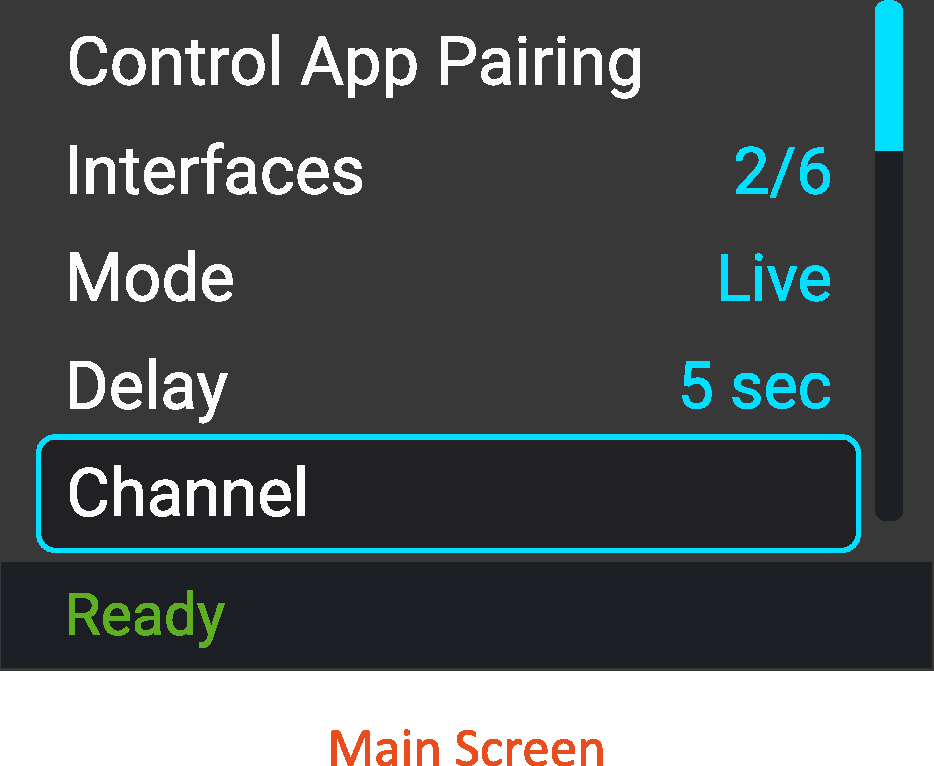

Pressing the JOG button from the Home screen will open the Main menu.
-
Once you have a menu on-screen, move the selection bar up and down by turning the JOG button to confirm your selection.
-
Press the Back/Prev button to go back a step (to the previous menu etc.)
-

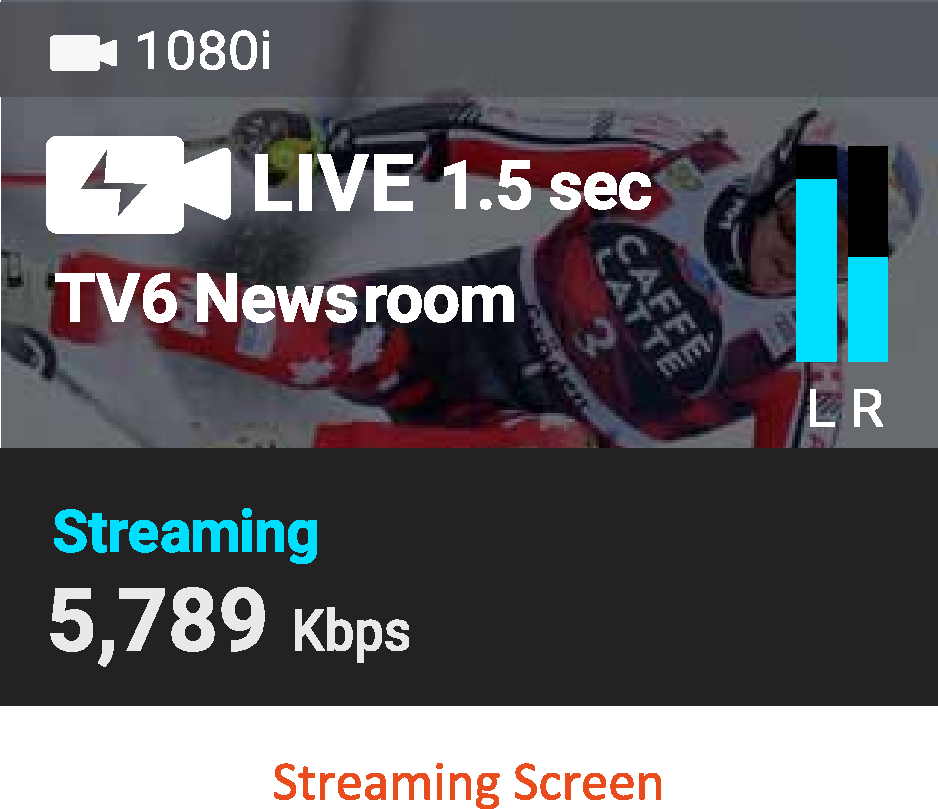

Use the Power/Play button to toggle between starting and stopping streaming on the unit and turning the unit on and off.
The LU610S provides two operational modes:
-
Live: Select this Profile for the LU610S to automatically start streaming when it goes live. Video is streamed according to the delay that is specified in the Main screen. This mode is selected by default.
-
Store & Forward: Select this mode when end-to-end delay is less important. This setting provides high image quality with high end-to-end delay. The video will appear as a file in LiveU Central.
|

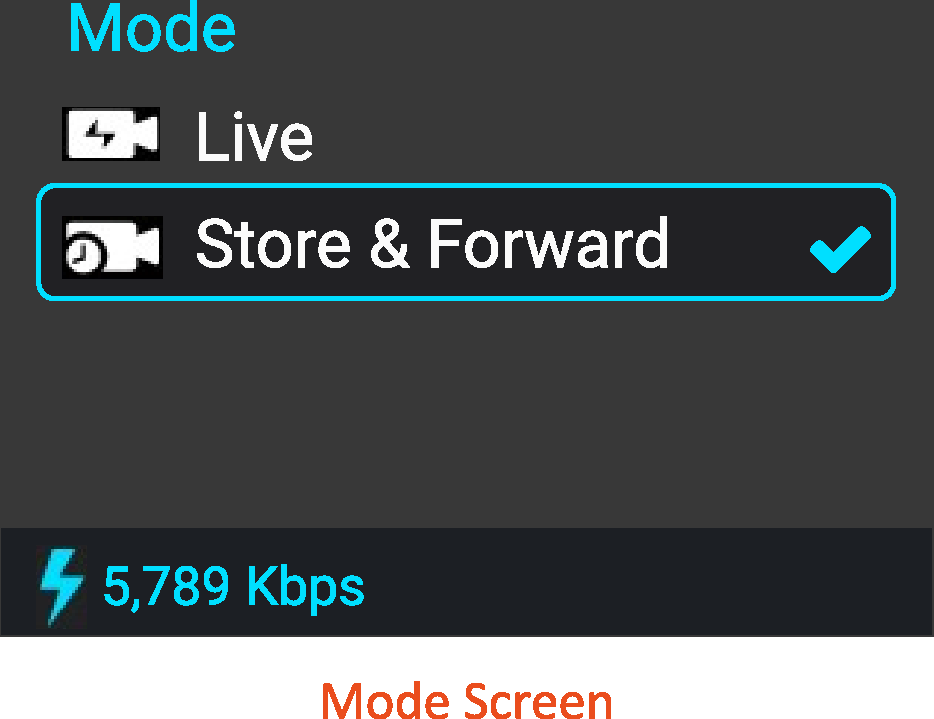

1. To select an operational mode, navigate to the Mode option in the Menu screen. |
2. Press the JOG button to display the Mode screen. |
|
|
|
|
3. Use the JOG to navigate to the required mode, and then press the JOG button to select it. |
|
Video is streamed from the LU610S system via the Internet to the selected MMH instance (channel) using one or more networks. The LU610S can stream to either of the following channel types by specifying the broadcast channel to be used, as described below:
-
LU2000/4000 Output Channel: The LU2000/4000 is typically located at the customer’s premises with either an SDI output or an IP streaming option to the cloud. The LU2000/LU400 can also be deployed in the cloud.
-
Virtual Group Channel: For previewing in the LiveU Central. Virtual Groups are indicated by the icon before the channel name in the Channels screen.

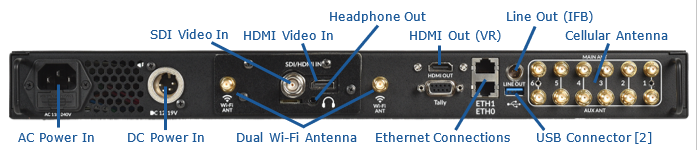

Use either SDI or HDMI video inputs to provide the LU610S with a source of live video. Note that while it is possible to have both cables physically connected, the LU610S will take its input from the SDI connection.
