If your LU800 is delivered with SIM cards installed, don't remove them or install SIMs from a different unit.
Each SIM pair is designated A or B. Tapping allows you to switch between SIM A and SIM B per modem. When the unit is turned on for the first time, it looks for the SIM cards in slots A.
-

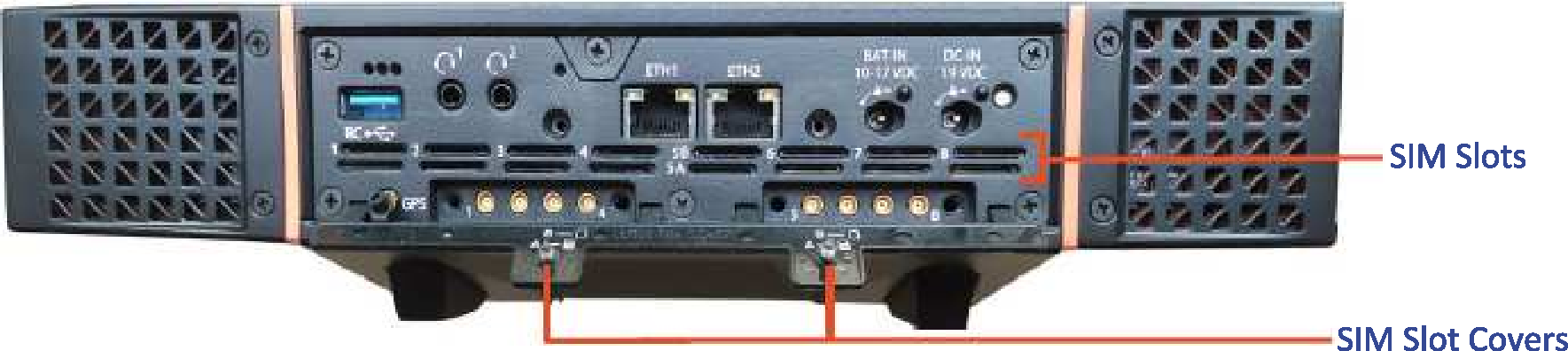

Loosen the two screws on the LU800 and gently pull the flap down to expose the SIM slots.
The slots are numbered from 1 to 8, left to right. The bottom row contains slots for SIM cards A. The top row contains slots for SIM cards B.
-
Insert the SIM cards into the slots in any order.

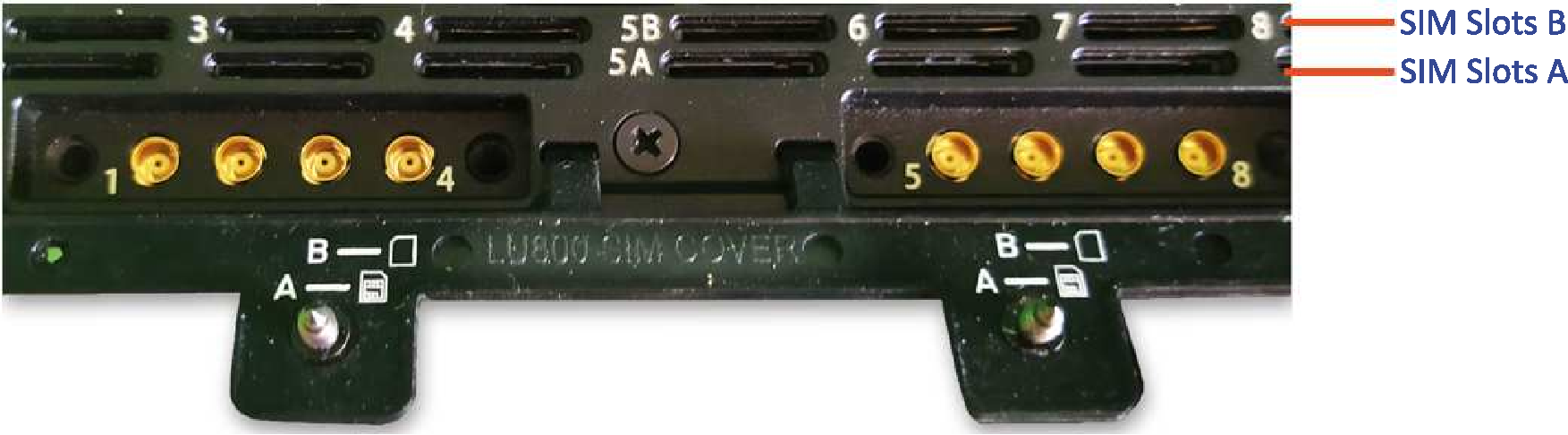

The following figure shows the open flaps, indicating how to hold the SIM card when inserting it into an A or B slot.
Note
The eight external antenna connectors shown in this figure are provided on request.
-
Close the flaps and tighten the screws.
